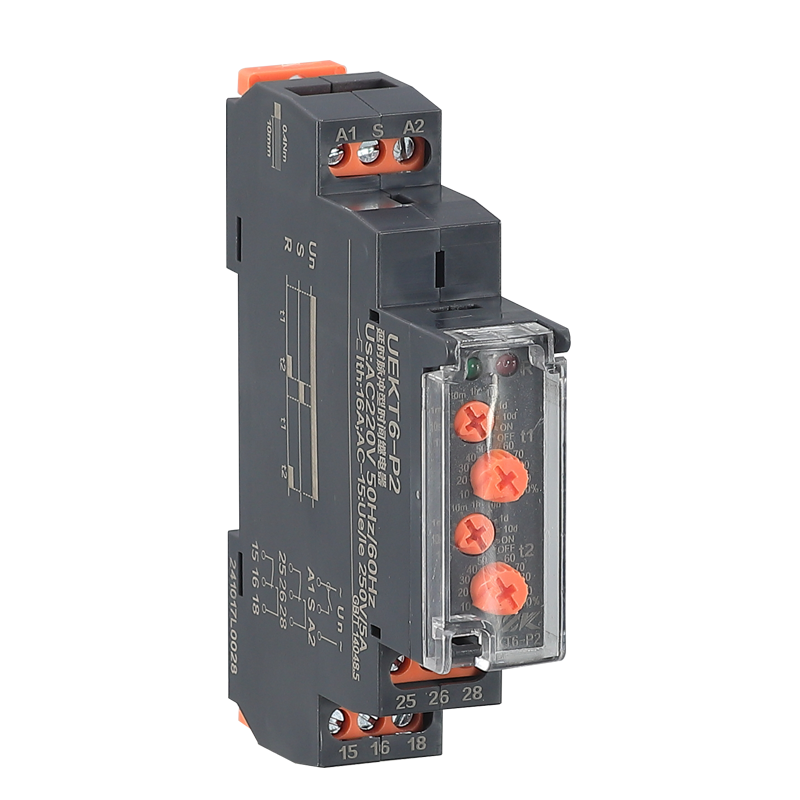

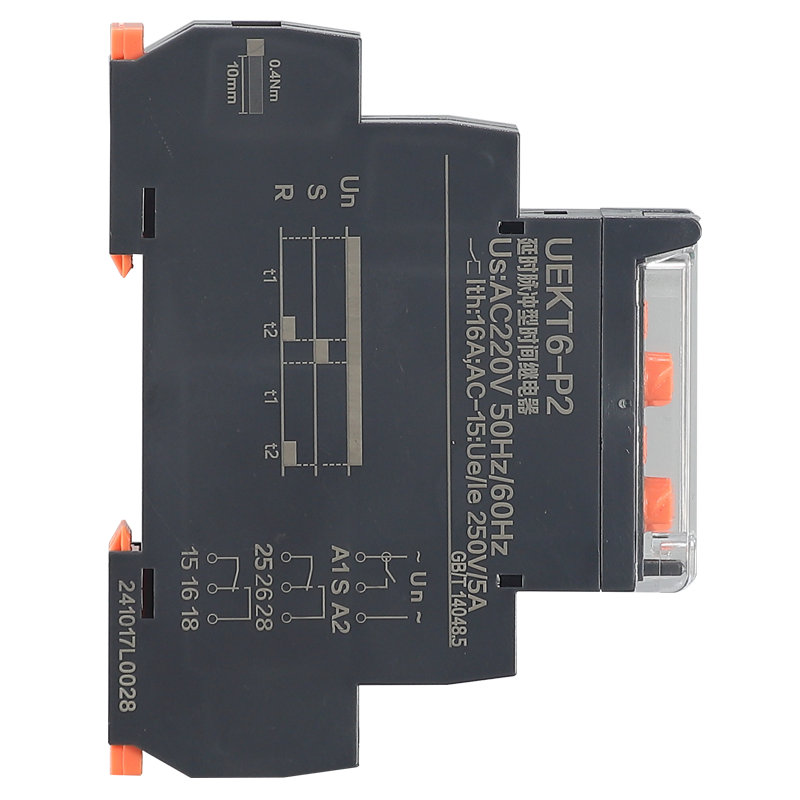

General
Applications
-lt is used to delay and generate a pulse, which is used to delay the connection ofa load for a period of time.
Function Features

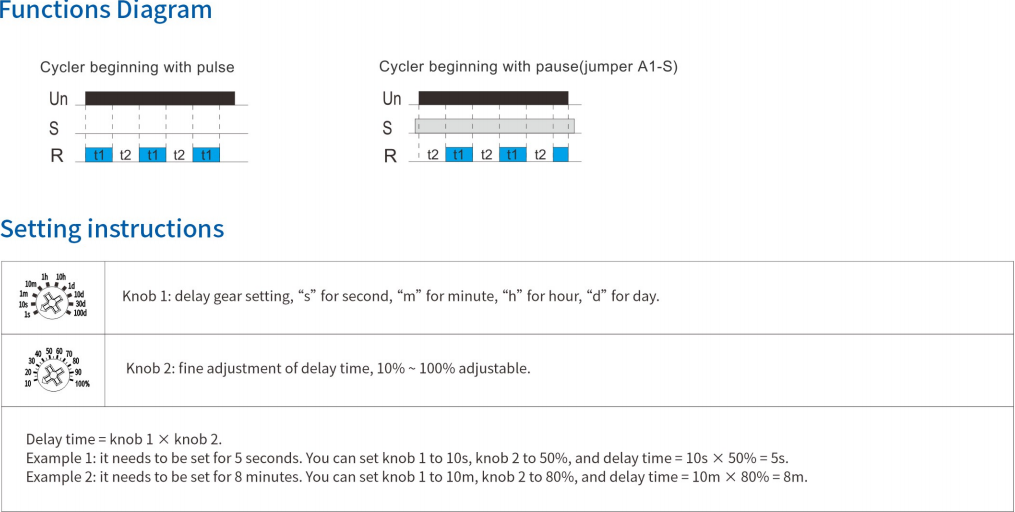

-Separate delay time and pulse width setting can set different delay time.
-Time scale 0.1s-100 days.
The delay time can be reset by shorting S-A1.
-With AC/DC 12V-240V ultra wide operating voltage specifications are optional.

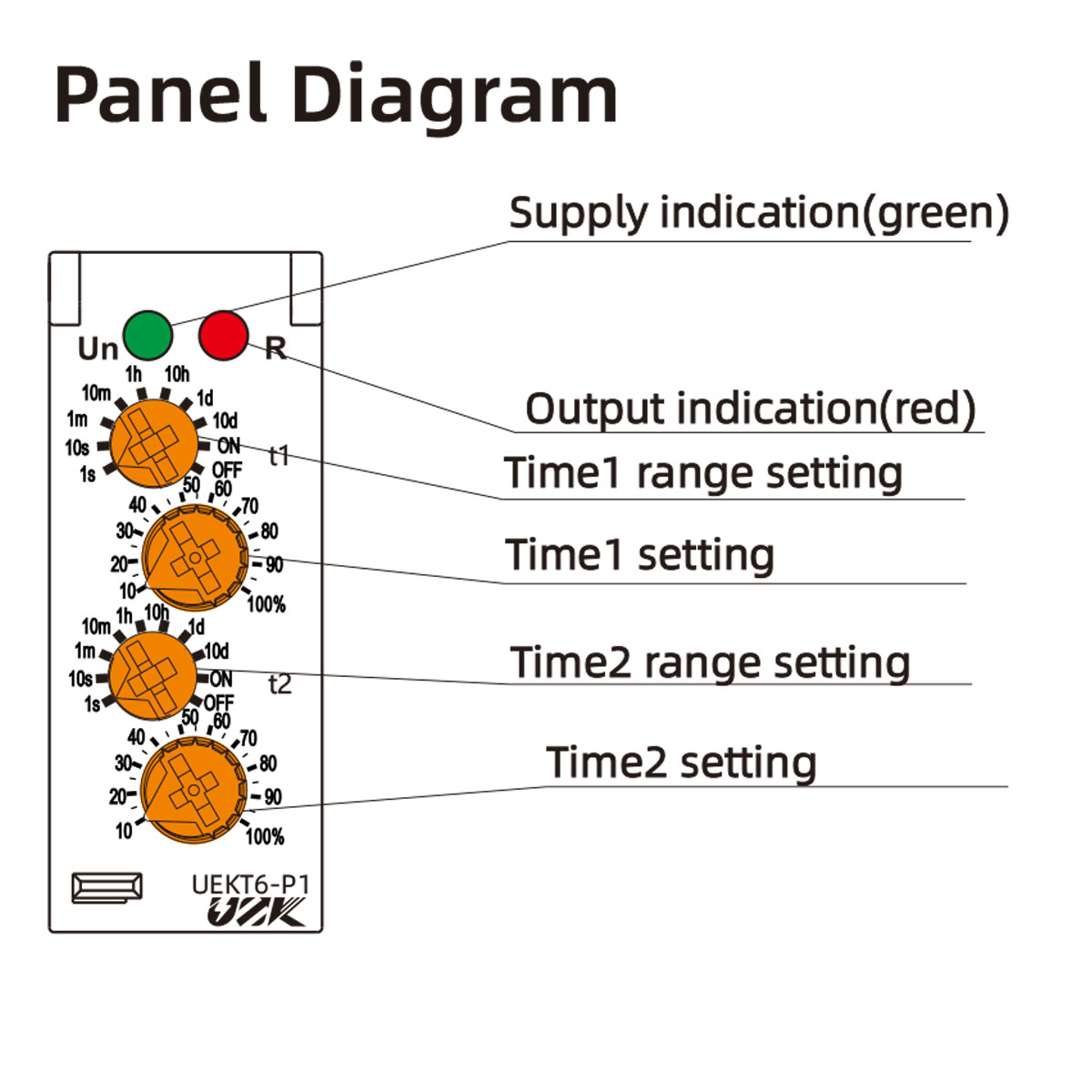

-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

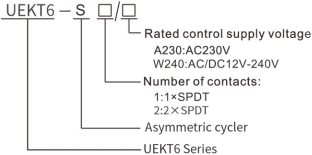

Model and Connotation
Technical parameters | UEKT6-P1 | UEKT6-P2 |
Function | Pulse output after time delay | |
Supply terminals | A1-A2 | |
Voltage range（W240） | AC/DC 12-240V(50-60Hz) | |
Burden（W240） | AC 0.09-3VA/DC 0.05-1.7W | |
Voltage range（A230） | AC 230V(50-60Hz) | |
Power input（A230） | AC max.6VA/1.3W | AC max.6VA/1.9W |
Supply voltage tolerance | -15%;+10% | |
Supply indication | greenLED | |
Time ranges | 0.1s-10days,ON,OFF | |
Time setting | potentionmeter | |
Time deviation | 10%-mechanical setting | |
Repeat accuracy | 0.2%-set value stability | |
Temperature coecient | 0.05%/c,at=20°C(0.05%F,at=68°F) | |

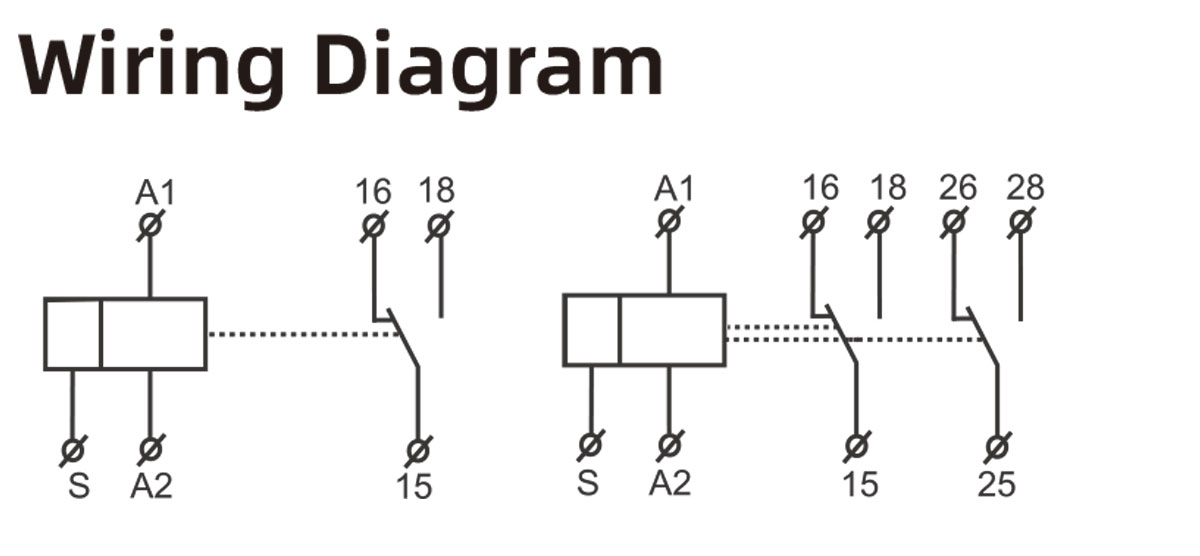

Output | 1xSPDT | 2xSPDT |
Current rating | 16A/AC1 | |
Switching voltage | 250VAC/24VDC | |
Min.breaking capacity DC | 500mW | |
Outout indication | red LED | |
Mechanical life | 1x107 | |
Electrical life（AC1） | 1x105 | |
Reset time | max.200ms | |
Operating temperature | -20℃to +55'℃(-4F to 131℉) | |
Storage temperature | -35'Cto +75℃℃(-22'F to 158℉) | |
Mounting/DIN rail | Din rail EN/IEC 60715 | |
Protection degree | IP40 for front panel/lP20 terminals | |
Operating position | any | |
Overvoltage cathegory | Ⅲ. | |
Pollution degree | 2 | |
Max.cable size（mm2） | solid wire max.1x2.5or2x1.5/with sleeve max.1x2.5(AWG 12) | |
Tightening torque | 0.4Nm | |

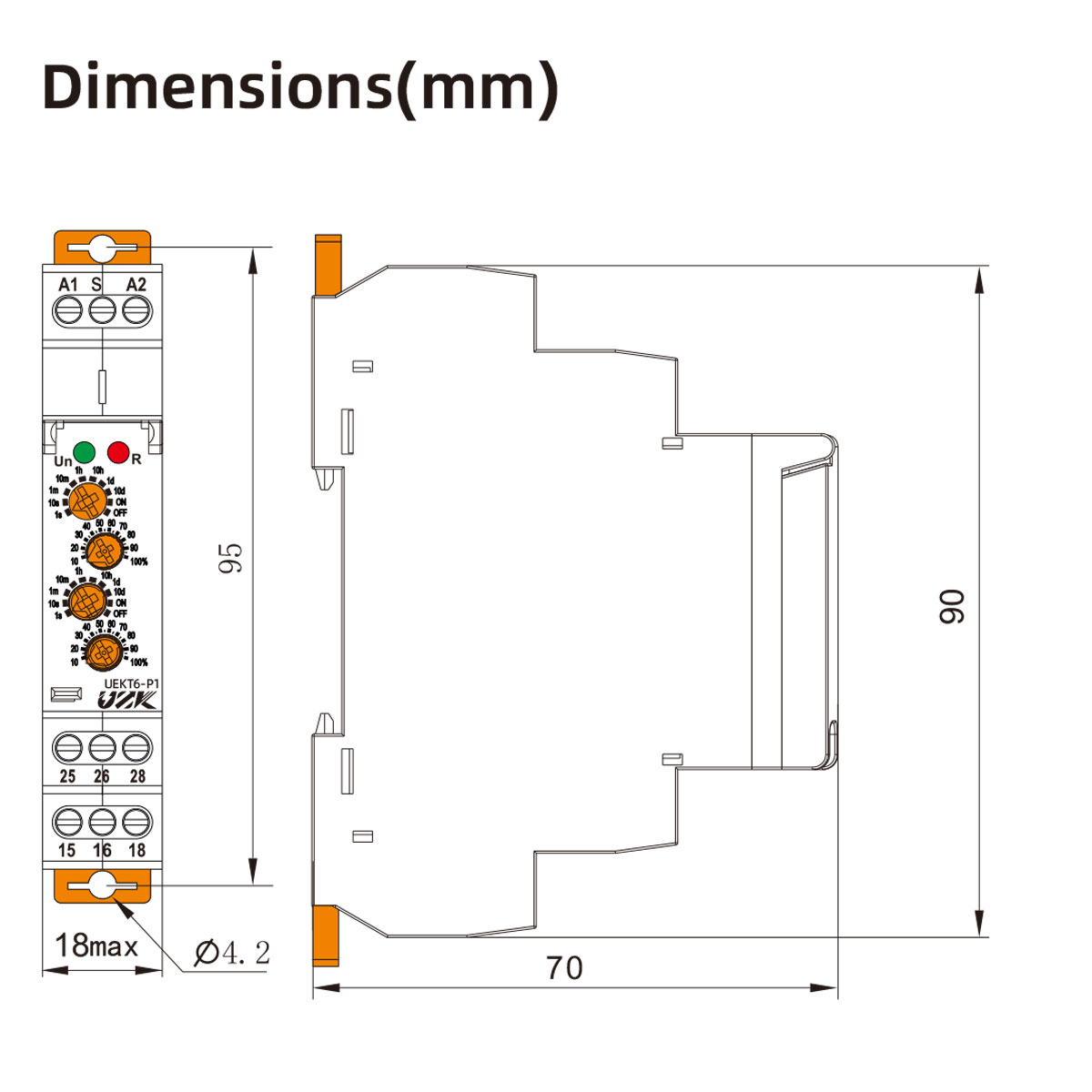

Dimensions | 90x18x70mm | |
Weight | W240-61g.A230-61g | W240-81g,A230-80g |
Standards | EN 61812-1,IEC60947-5-1 | |
