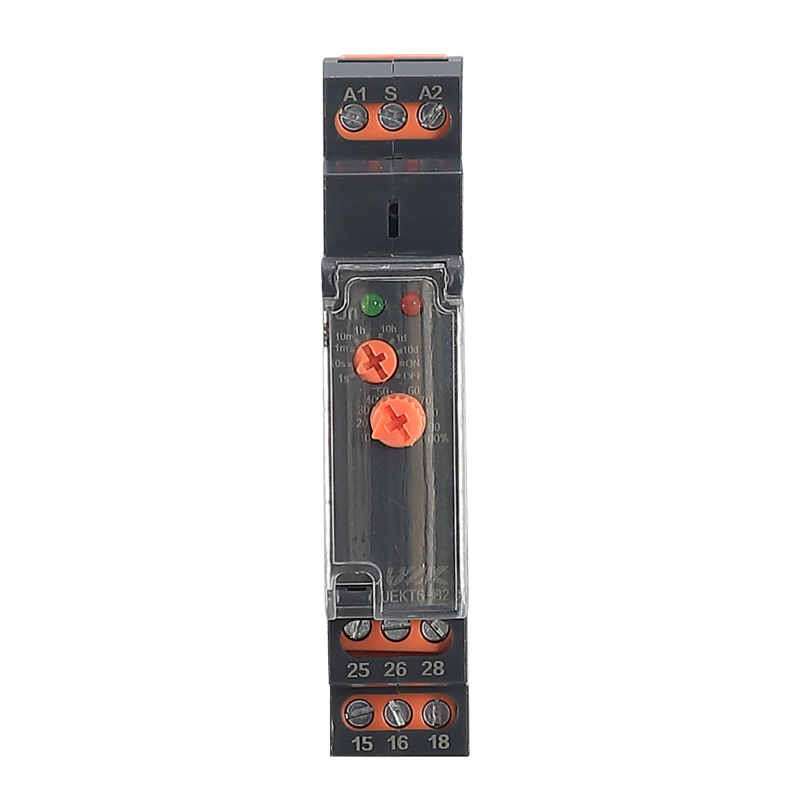

General
Applications
-Suitable for applications where function and time requirements are know.
-Time switch , possible to be used for pump decay time after switchingheating off,switching of fans.

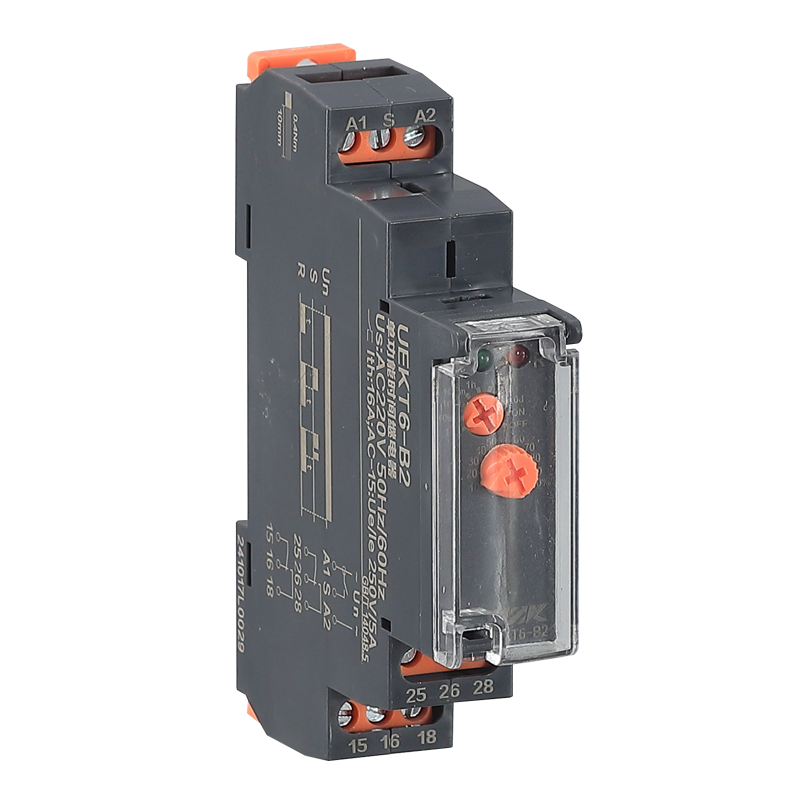

Function Features
-Single-function relay with possibility oftime setting by a potentiometer.

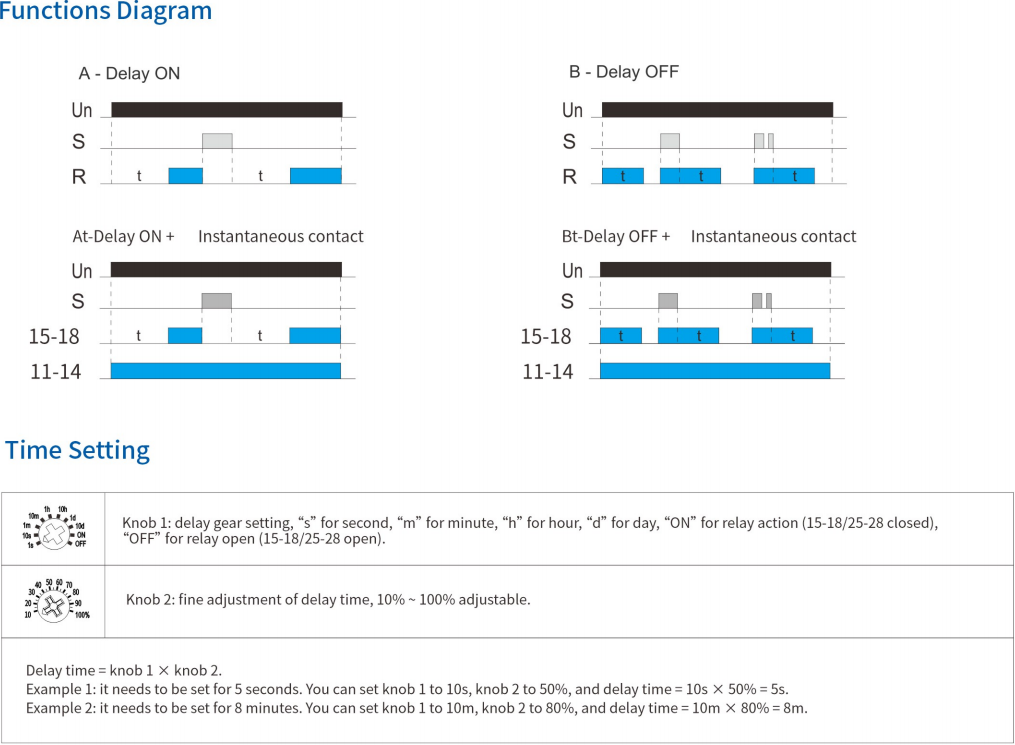

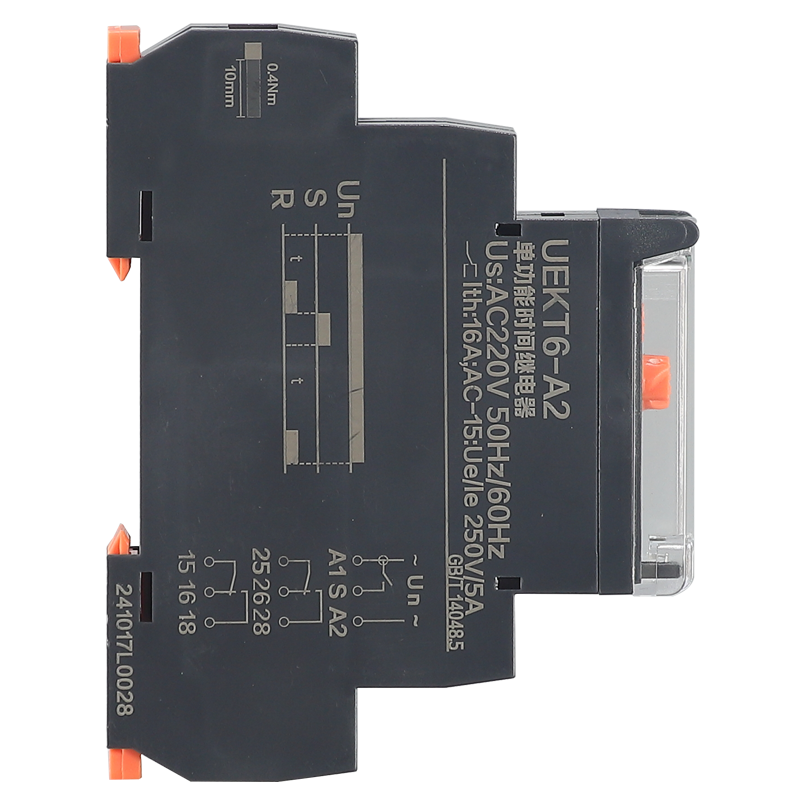

-Choice of 2 functions:
A:Delay ON
B:Delay OFF
-Time scale 0.1 s-10 days divided into 10 ranges..-Relay statusis indicated byLED.
-1-MODULE,DINrail mounting.

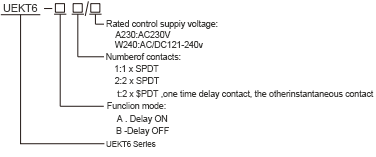

Model and Connotation
Technical parameters | UEKT6-A1/B1 | UEKT6-A2/B2 | UEKT6-At/Bt |
Function | A:delay ON;B:delayOFF | ||

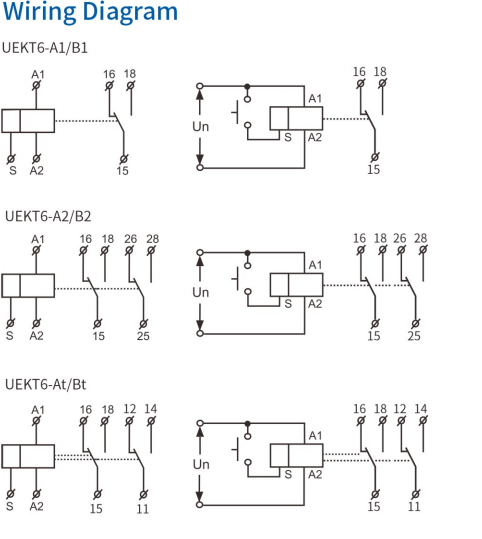

Supply terminals | A1-A2 | ||
Voltage range（W240） | AC/DC 12-240V(50-60Hz) | ||
Burden（W240） | AC 0.09-3VA/DC 0.05-1.7W | ||
Voltage range（A230） | AC 230V(50-60Hz) | ||
Power input（A230） | AC max.6VA/1.3W | AC max.6VA/1.9W | |
Supply voltage tolerance | -15%;+10% | ||

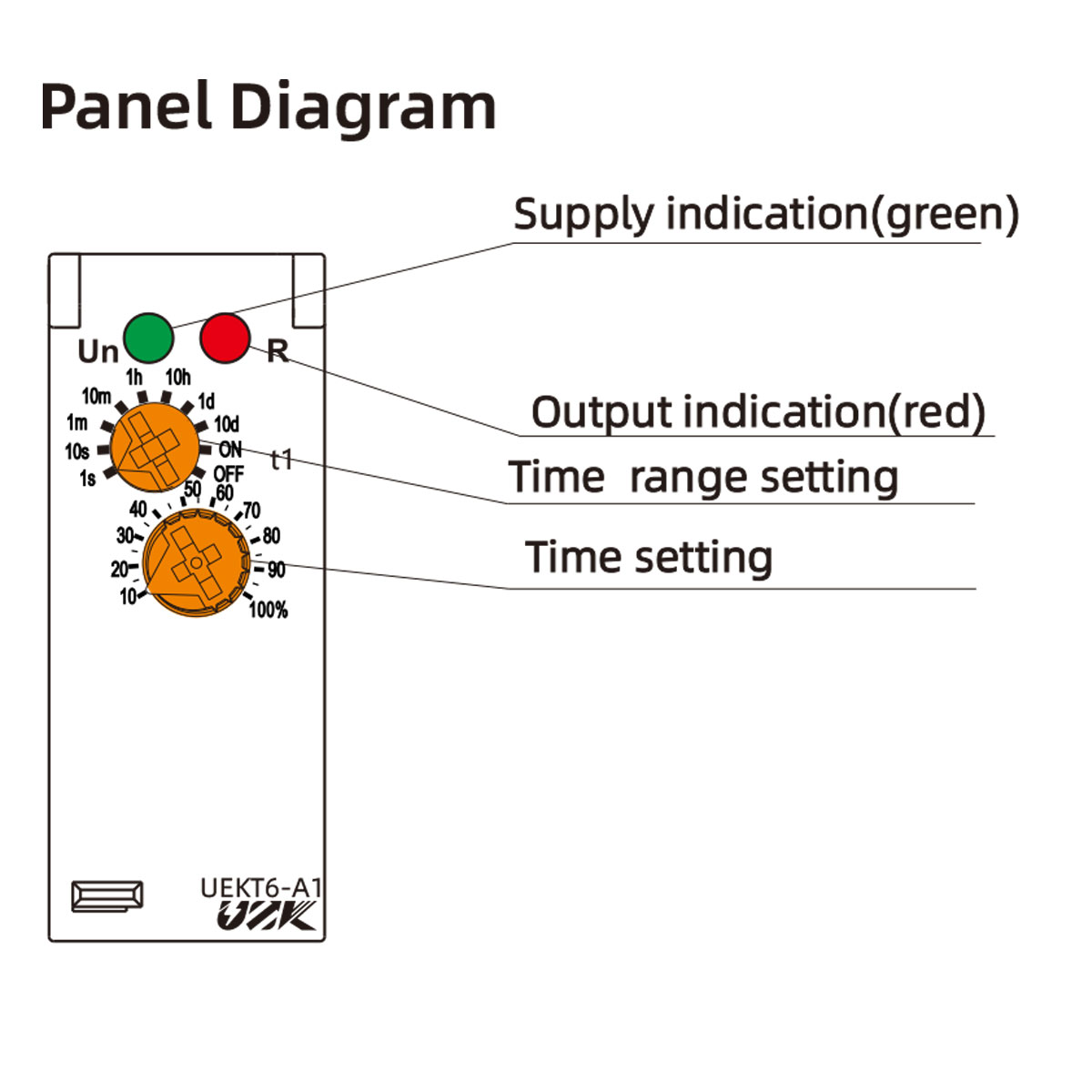

Supply indication | greenLED | ||
Time ranges | 0.1s-10days,ON,OFF | ||
Time setting | potentionmeter | ||
Time deviation | 10%-mechanical setting | ||
Repeat accuracy | 0.2%-set value stability | ||
Temperature coecient | 0.05%/c,at=20°C(0.05%F,at=68°F) | ||
Output | 1xSPDT | 2xSPDT | 1xSPDT(del)+1XSPDT(ns) |
Current rating | 16A/AC1 | ||
Switching voltage | 250VAC/24VDC | ||
Min.breaking capacity DC | 500mW | ||
Outout indication | red LED | ||
Mechanical life | 1x107 | ||
Electrical life（AC1） | 1x105 | ||
Reset time | max.200ms | ||
Operating temperature | -20℃to +55'℃(-4F to 131℉) | ||
Storage temperature | -35'Cto +75℃℃(-22'F to 158℉) | ||
Mounting/DIN rail | Din rail EN/IEC 60715 | ||
Protection degree | IP40 for front panel/lP20 terminals | ||
Operating position | any | ||
Overvoltage cathegory | Ⅲ. | ||
Pollution degree | 2 | ||
Max.cable size（mm2） | solid wire max.1x2.5or2x1.5/with sleeve max.1x2.5(AWG 12) | ||
Tightening torque | 0.4Nm | ||

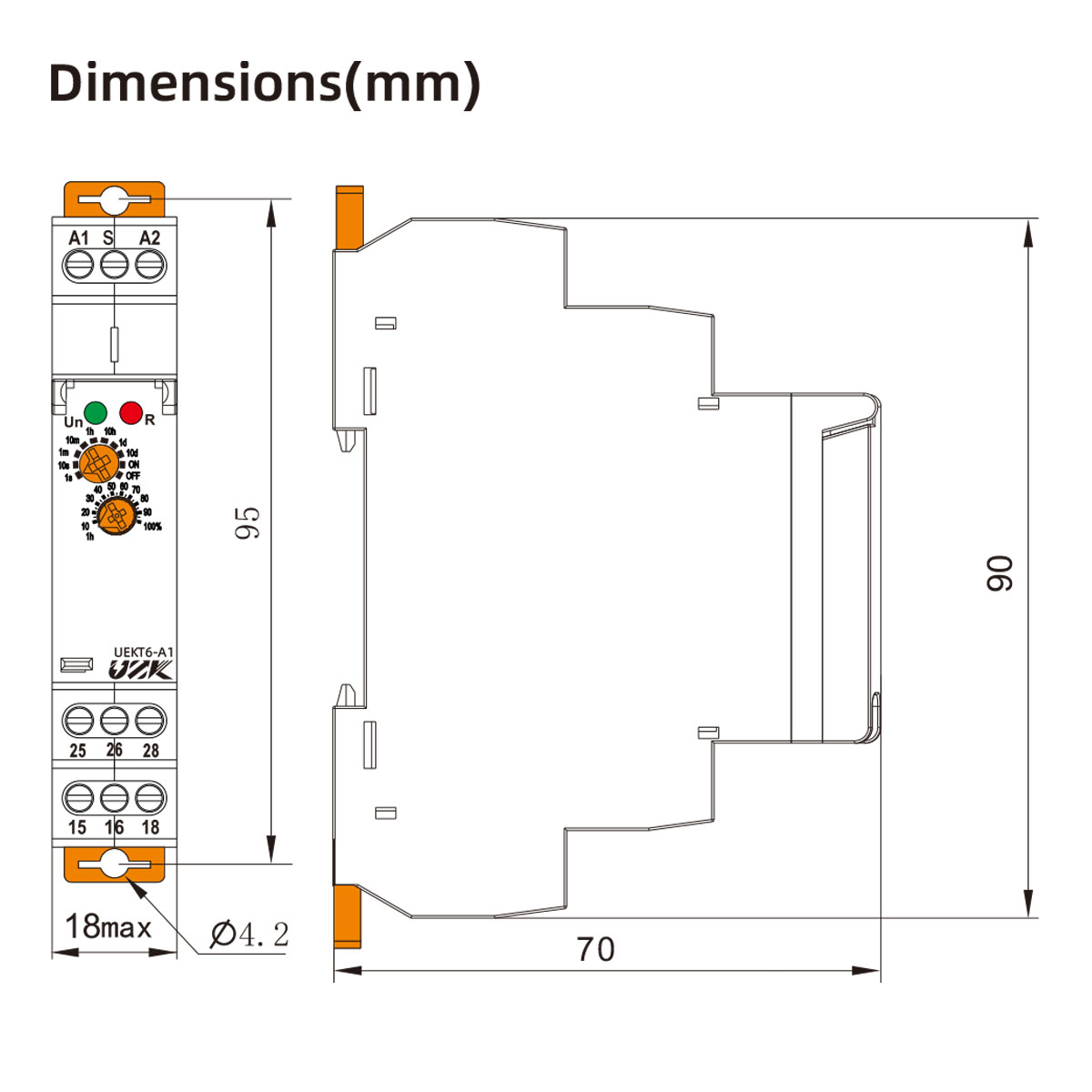

Dimensions | 90x18x70mm | ||
Weight | W240-61g.A230-61g | W240-81g,A230-80g | |
Standards | EN 61812-1,IEC60947-5-1 | ||
