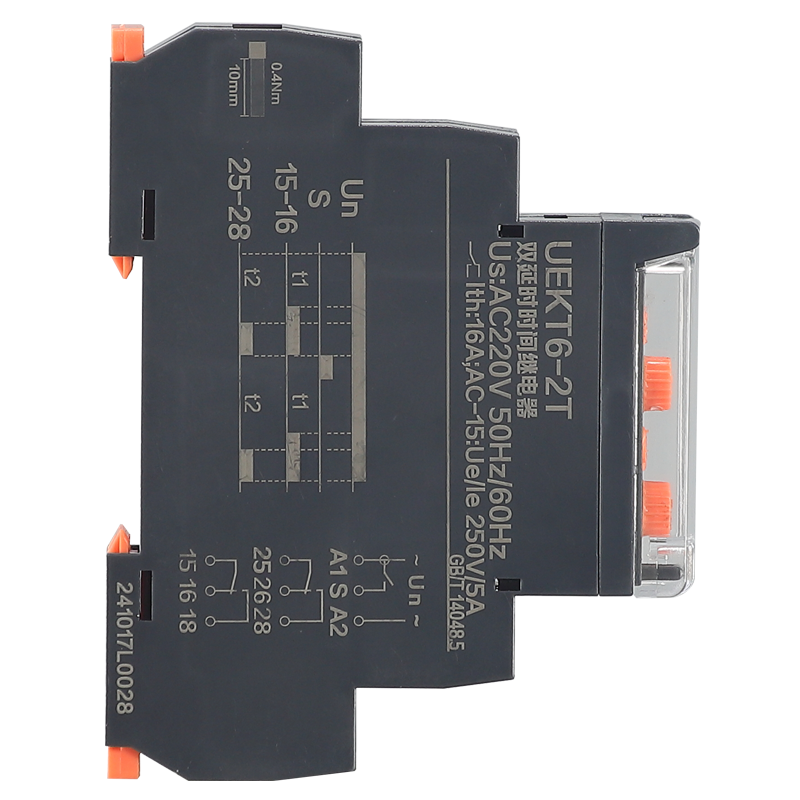

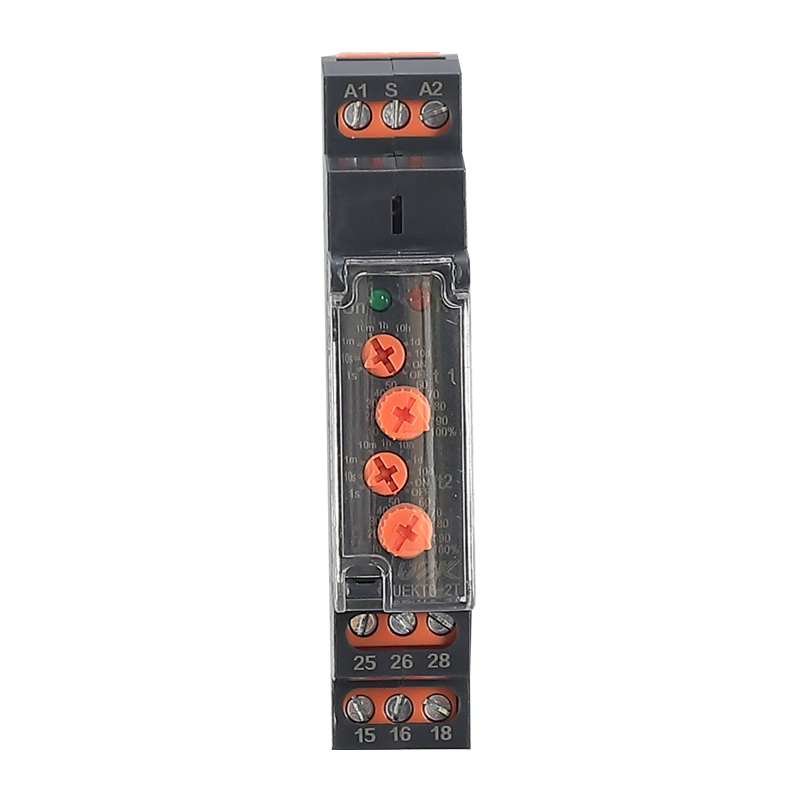

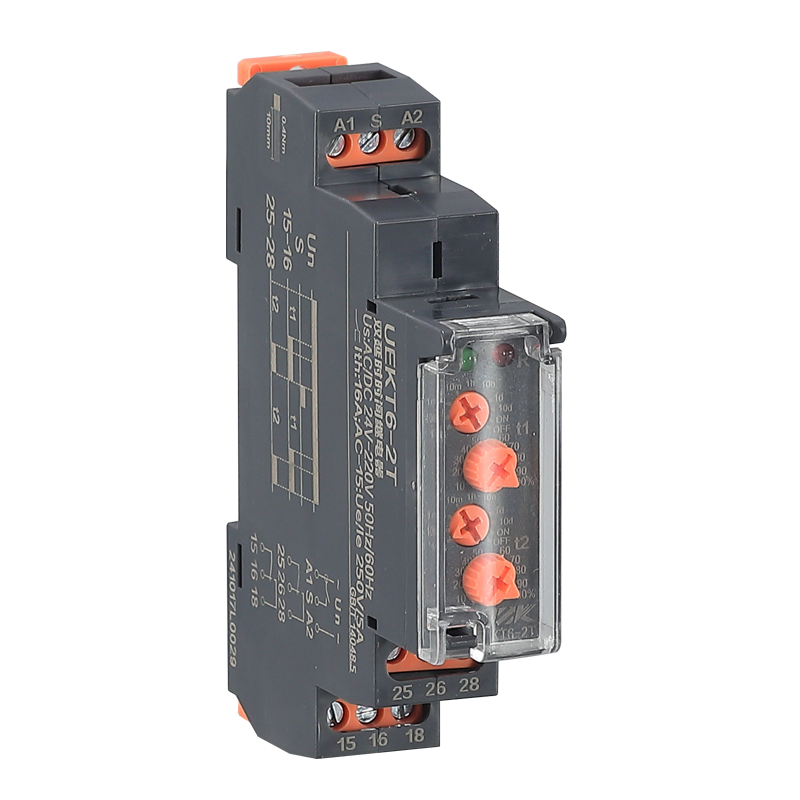

General
Applications
-For gradual switching of heavy powers (e.g. el.heating), prevents currentstrokes in the main.
Function Features
-2x Delay ON (2 time relays in one)
-Time scale 0.1s -10 days divided into 10 time ranges:
0.1s-1s/1s-10s/0.1min-lmin/1min-10min/0.1h-1h/1h-10hrs10.1 day-1 day/1 day-10 days/ON/ OFF.
-Times tl and t2 are independantly adjustable.
-tl and t2 are switched on after supply voltage connection
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

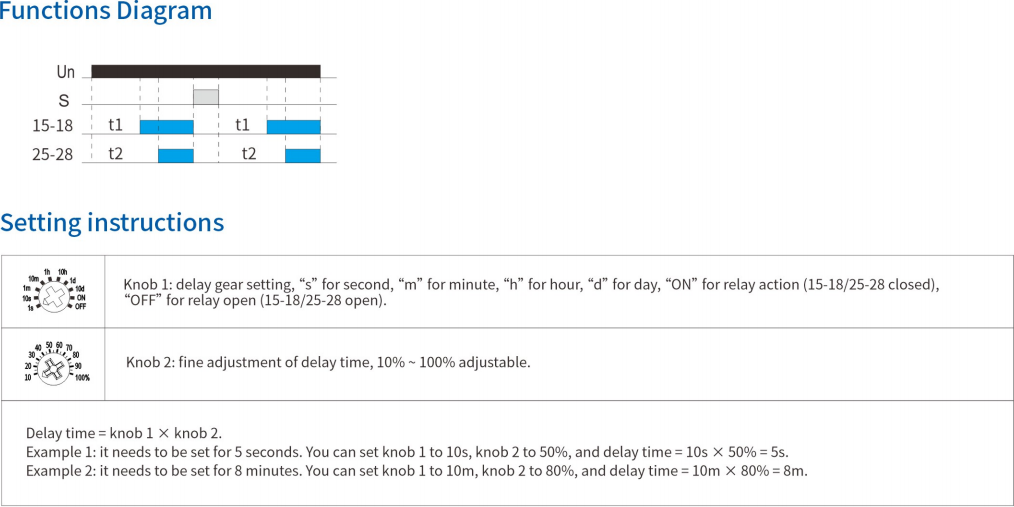

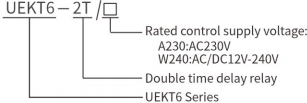

Model and Connotation
Technical parameters | UEKT6-2T |
Function | 2x Delay ON |
Supply terminals | A1-A2 |
Voltage range（W240） | AC/DC 12-240V(50-60Hz) |
Burden（W240） | AC 0.09-3VA/DC 0.05-1.7W |
Voltage range（A230） | AC 230V(50-60Hz) |
Power input（A230） | AC max.6VA/1.9W |
Supply voltage tolerance | -15%;+10% |
Supply indication | greenLED |
Time ranges | 0.1s-10days,ON,OFF |
Time setting | potentionmeter |
Time deviation | 10%-mechanical setting |
Repeat accuracy | 0.2%-set value stability |
Temperature coecient | 0.05%/c,at=20°C(0.05%F,at=68°F) |
Output | 2xSPDT |
Current rating | 16A/AC1 |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Outout indication | red LED |
Mechanical life | 1x107 |
Electrical life（AC1） | 1x105 |
Reset time | max.200ms |
Operating temperature | -20℃to +55'℃(-4F to 131℉) |
Storage temperature | -35'Cto +75℃℃(-22'F to 158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protection degree | IP40 for front panel/lP20 terminals |
Operating position | any |
Overvoltage cathegory | Ⅲ. |
Pollution degree | 2 |
Max.cable size（mm2） | solid wire max.1x2.5or2x1.5/with sleeve max.1x2.5(AWG 12) |
Tightening torque | 0.4Nm |

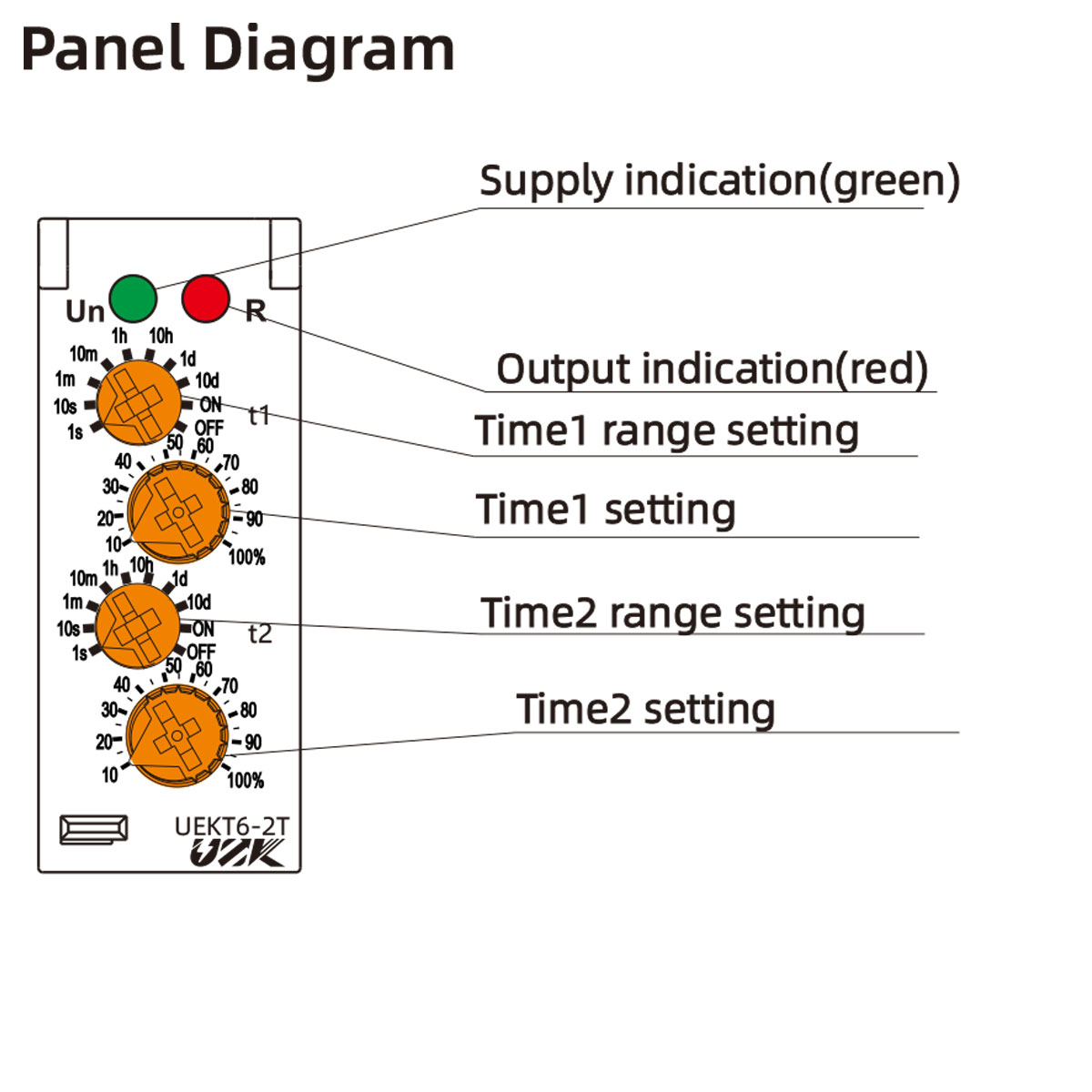

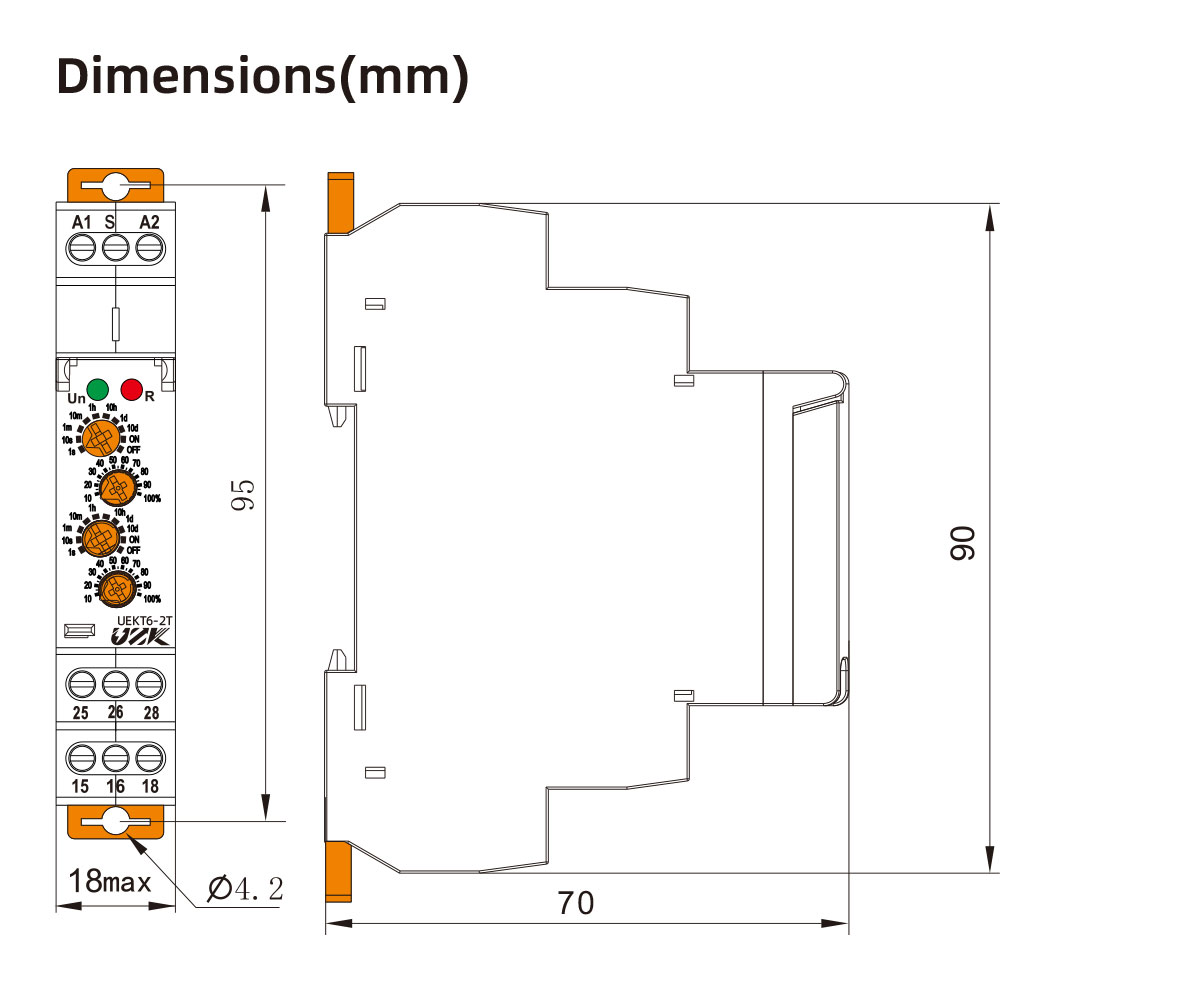

Dimensions | 90x18x70mm |
Weight | W240-81g,A230-80g |
Standards | EN 61812-1,IEC60947-5-1 |
